The environmental chamber is used to speed the aging process for lifetime testing. It can also be used for exposure testing to verify operation at given environmental conditions. This chamber can be used for material properties testing or on electronic devices that require exposure. By using the environmental chamber you can inject different failure mechanisms into the device or item being tested. This could be an extreme temperature on an electronic device or advanced material. By performing this type of testing during the design phase of a program, the weak points of the design can be located.

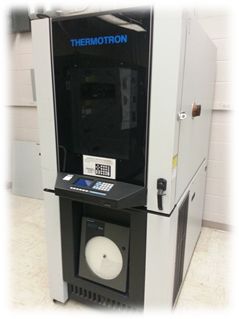

Environmental Chamber

Thermotron Model
SE-200-2-2

System Specifications
Manufacturer Thermotron
Type / Model SE-200-2-2
Working Envelope

10.125 cubic feet: 24"x 27"x 27" (W x D x H)

Operating Temperature

-68℃ to 177℃  (-90℉ to 350℉)

Humidity Range 10% RH to 98% RH

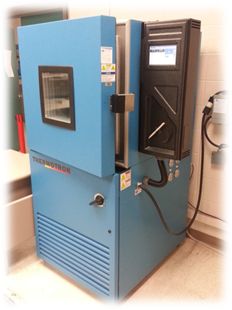

thermotron environmental chamber model sm8 8200

Thermotron Model
S8-8200

System Specifications
Manufacturer Thermotron
Type / Model 8-8200
Working Envelope

8 cubic feet: 24"x 24"x 24"
(W x D x H)

Operating Temperature

-68℃ to 177℃  (-90℉ to 350℉)

Humidity Range 10% RH to 98% RH



Download a copy of system specifications:
